Appearance of Sasayama Sasayama has been supplying the diversified precision stamping dies to various industrial fields since our foundation in 1972.

Our company location is Tottori Prefecture in Japan, where few large scale mass-production manufacturers are situated, which forced us to specialize and continually innovate within our industry.

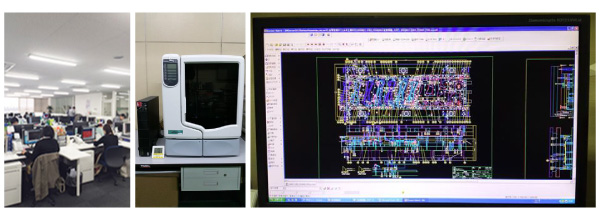

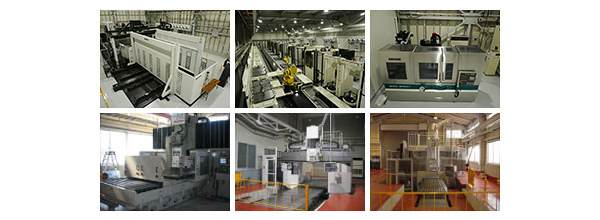

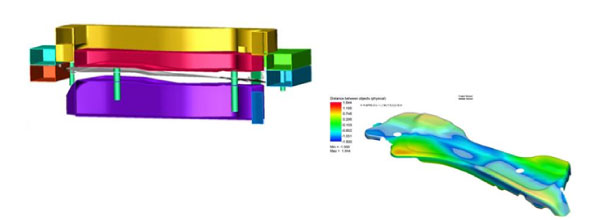

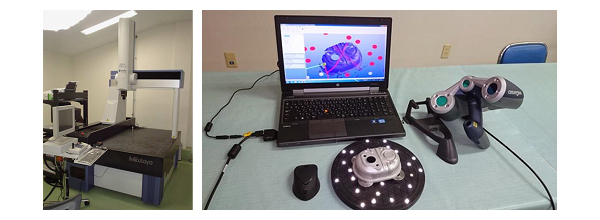

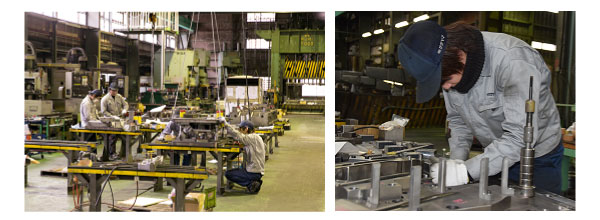

DIE MANUFACTURING PROCESSES

Place the cursor on PROCESS icon for display change.

AUTOMOTIVE DIE RELEVENT INFORMATION

We are capable of meeting the customer's requirement for all-round stamping die types such as Tandem, Progressive and Transfer types.

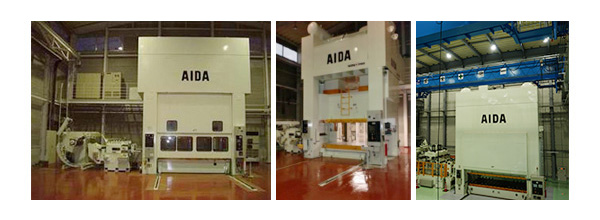

Our speciality is the PROGRESSIVE STAMPING DIE type, as we have high speed large tryout press machines (AIDA PM X 1600TON, PM X 1000TON and SM X 600TON),
All our press machines are equipped with the leveller feeder, thus the customer’s mass-producing conditions/environment can be reproduced in our factory before shipment.

    Seat

  • RISER,LIFTER FR INSIDE
    Material:JSH590RN
    Thickness : 2.6mm
    Process:Progressive 15st

  • RAIL-LWR/UPR
    Upper Rail
    Material:980
    Thickness:1.4mm
    Process : Progressive 23Process

    Lower Rail
    Material : 780
    Thickness : 1.4mm
    Process : Progressive 24Process

  • LEVER,SEAT TRACK LOCK
    Material : SPFH590
    Thickness : 2.3mm
    Process : Progressive 37st (inc. idle)

  • PANEL,RR SEAT BACK LH
    Material : SPCC
    Thickness : 0.5mm
    Process : TRF 6st 1out

    Seat

  • CUSH PANEL,FR SEAT
    Material : SPCC
    Thickness : 1.0mm
    Process : Progressive 3st + 7st

  • SIDE FRAME INN,FR CUSH
    Material : SAPH440
    Thickness : 1.6mm
    Process : Progressive 14st 1out

  • BACK SIDE FRAME
    Material : SPFC590B
    Thickness : 1.2mm
    Process : Progressive 18st

    Door

  • REINFORCEMENT,FR DOOR LOCK
    Material : SCGA440-45
    Thickness : 1.2㎜
    Process : Bk Progressive + TRF 1st 1out

  • CORNER PIECE・FR DOOR
    Material : SCGA 270D-45
    Thickness : 1.2mm
    Process : Bk Progressive + TRF 12st 1out

  • Body skeleton

  • REINFORCEMENT, BACKDOOR STAY RH
    Material : SCGA270D-45
    Thickness:1.4㎜
    Process : Bk Progressive + TRF 6st

    Chassis

  • SPLASH GUARD FR
    Material : GA-DQ
    Thickness : 0.6㎜
    Process : Progressive 8st 1out

  • BRKT DPR RR R/L
    Material : JSH K40W
    Thickness : 3.2㎜
    Process : Progressive 13st setout

  • Bumper

  • REINFORCEMENT,QUARTER PANEL NO.1 RH/LH
    Material : SPC270
    Thickness : 0.8㎜
    Process : Progressive 12st setout

    Engine Periphery

  • VIBRATION CONTROL
    Material : SPC440
    Thickness : 4.0㎜
    Process : BL Progressive + TRF 6st

FLAT SCREEN TV SET related

Sasayama flat-screen TV Our selling point is the back panel for big flat screen TV sets.

Especially we have overwhelming strength in the area of TV screen size bigger than 42” due to high quality (i.e. the panel quality and die lifetime)
and short delivery time, thanks to our long accumulated experience and technology.
HOME APPLIANCE/GAS/PETROLEUM/HOUSING/

ENERGY-SAVING PRODUCTS related

Sasayama flat-screen TV These fields are our historic business lines since our foundation.

The lines are destined for the white goods in the first place such as Microwave Oven, Refrigerator, Washing Machine and Air-Conditioner, further for Kitchen Equipment, Gas Appliance, Energy-Saving Products, etc.
